50 PLC+IPC control Simplex/duplex cable/Armored optical cable production line
Short Description:
Applied in production of simplex/duplex cable, Armored optical cable,extrusion material is LSZH/PVC,TPU. The extruded sheath possesses the features of even diameter, smooth, fast speed. And low excess loss for optical fiber.
| No. Of optical fiber pay off： | 4 |
| Tension of pay off： | 0.4～1.5N±0.05N |
| Reel of optical fiber pay off： | 25km and 50km standard fiber reel,PN400 |
| Extruder size： | Φ50x25D |
| Final product： | Drop/simplex/duplex cable(2.0，3.0mm) |
| Structure speed： | Max 150m/min |
| Production speed： | 20-100m/min(2.0，3.0mm) |
| Center height of machine： | 1000mm height from ground |
| Precision of meter-counter： | ≤0.2％ |
| Take-up tension: | 5-20N |
| Take-up reels Specification: | 400 reel and 630 reel(central shaft hole diameter ø 56) |
| Additional loose after extrusion： | ≤0.02dB/km(average value: 0.01 dB/km) |
| Power： | Approximate 58KW |
| Weight： | 7 ton |
| Line length： | 26M |
| Machine power： | 380V 50HZ three phase five wire |
| Line direction： | Right to Left，Left to Right |
| Range of air pressure： | 0.5-0.6MPa |
| Machine color： | blue-black |
Specification and technical parameter of each equipment part

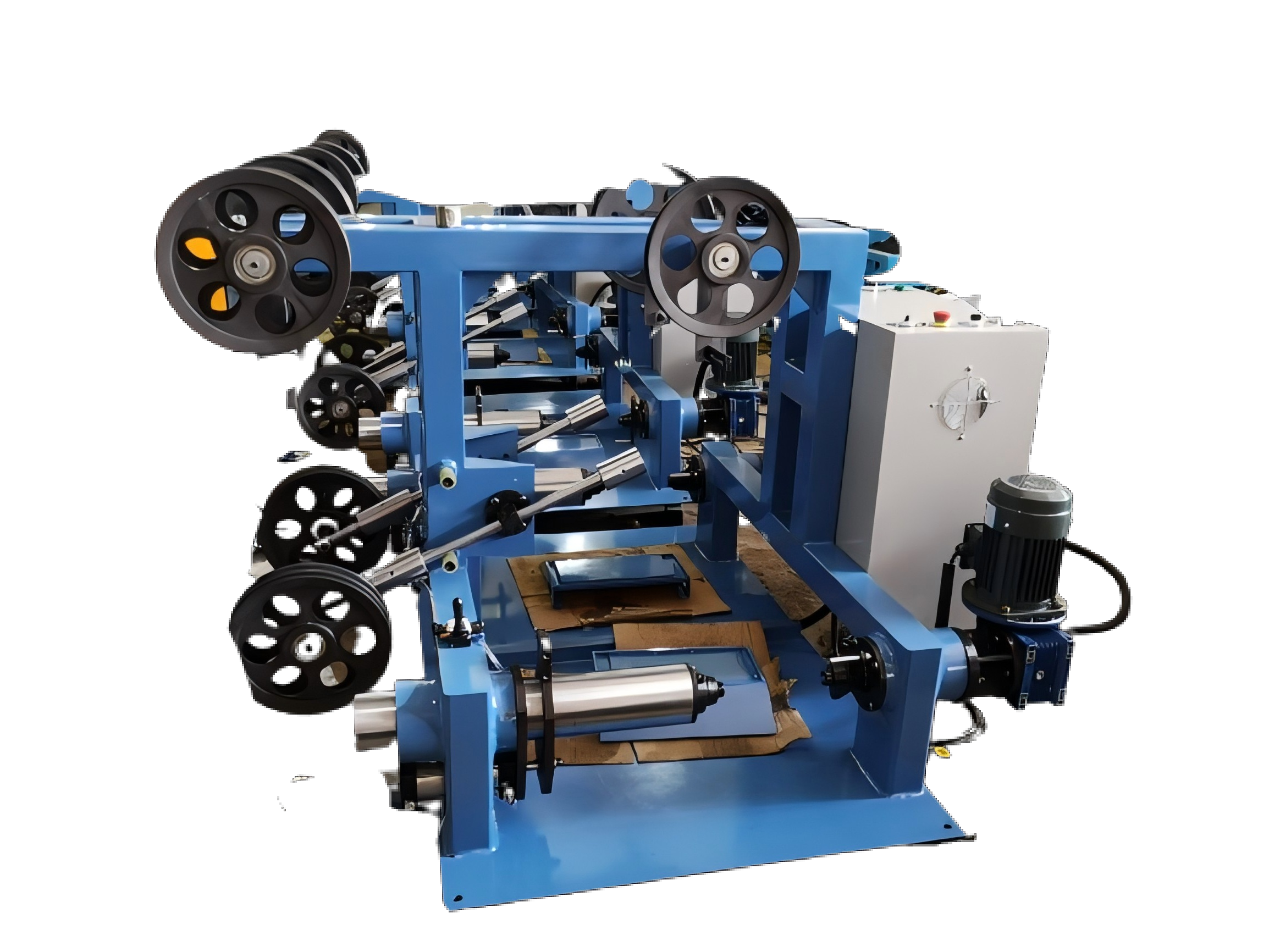

- 4heads optical fiber motorized payoff rack
(1). Cabinet structure , the horizontal cylinder
(2). Pay-off reels:25km and 50 km standard optical fiber reels, PN400
(3). 2sets 0.75KW CPG gear motor +Danfoss transducer control
(4). Swing arm type tension controller
