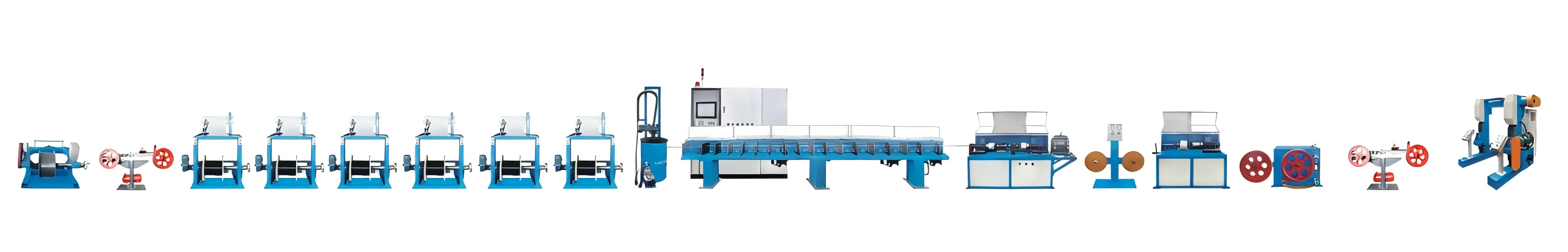

800-12 PLC+IPC control SZ stranding machine production line
Short Description:
be suitable for SZ stranding optical-fiber cable, and used for the production of the SZ stranding optical-fiber cable of optical-fiber tube outside diameter Φ1.2-Φ3.0mm.
| Strength member： | Φ2mm～Φ15.0mm |
| Maximum diameter after SZ： | Φ20mm |
| No. and diameter of loose tube： | (Φ1.2mm～Φ3.0mm)/12 |
| Structure speed： | 100m/min |
| Production speed(binder pitch:25mm, cabling pitch:80mm)： | 80m/min |
| Cabling pitch： | (50~250)mm |
| SZ stranding angle： | ±(4～18)π |
| SZ rotation speed： | Max 1200 rpm |
| Binder rotation speed： | Max 4000 rpm |
| Binder pitch： | 15~50mm |
| Precision of meter-counter： | ≤0.2％ |
| Additional loose after production： | ≤0.02dB/km |
| Machine color and direction： | Dark blue and direction is up to customer |
| Machine power source： | 380V 50HZ three phase five wire |
| Machine power： | 56KW |
| Line length： | 45m |
| Weigh： | 9ton |
Main electrical part brand
(1) Motor: Siemens Beide Motor, servo motor: Panasonic servo motor
(2) Invertor/transducer:Nidec invertor
(3) PLC: Siemens PLC S7
(4) Industrial computer: Taiwan ADVANTECH
(5) AC contact:Schneider
(6) Bearing: NSK
(7) Low voltage electrical brand: Taiwan fotek, Orman, Schneider brand, etc
