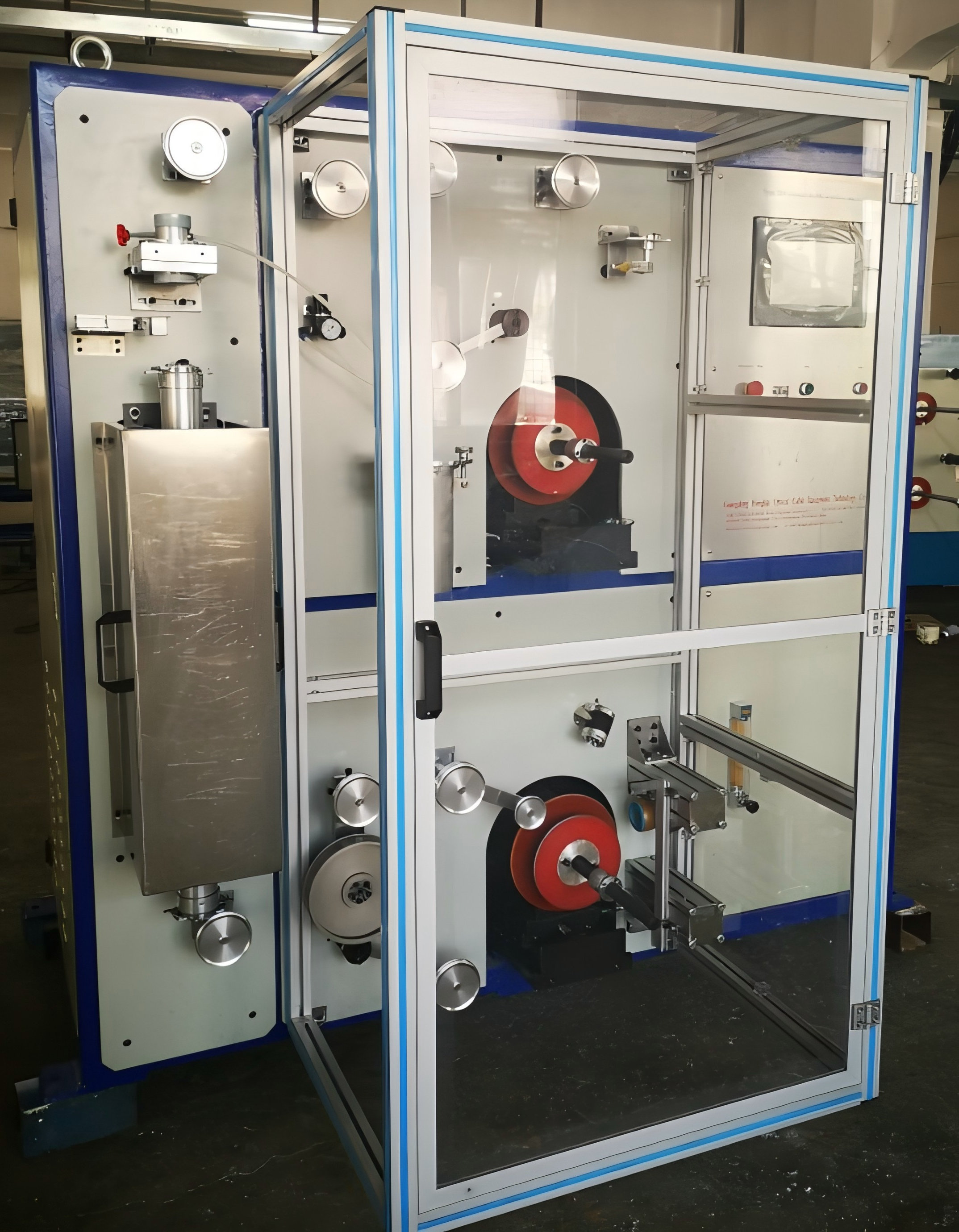

Main specification and performance：

1. No of optical fiber:1 piece

2. Coloring speed:1600m/min ewq

3. Structure speed :1800m/min

4. Rewinding speed:≦1800m/min

5. Coloring layer thickness:3-5um

6. Pay-off tension:0.2N-1.0N±0.05N

7. Traversing pitch:0.1-2.0mm

8. Excess loss after coloring:≦0.02db/km

9. Optical fiber reel size(MAX):ø236×ø25.4×ø225mm,weight:10kg(25.2km/50.4km reel)

10.As usual preceding die:0.26mm, coloring die:0.256mm.

11. Machine size:L1900mm*W1350mm*H2100mm, color:RAL5015

12.Total power:About 13KW, three wire five phase, 380V 50HZ

13.Nitrogen purity ≥99.99%

14.Press air pressure 0.5Mpa

15.Operating temperature 20-25℃

16.Cooling fan motor:1.1KW

 Main technical parameter and configuration：

Movable driven optical fiber pay-off device

1-1. Drive: 2 sets1kw Panasonic servo motor control

1-2. Adopt movable pay-off device, reduced the pay-off tension ，and reduced the shaking of optical fiber,can control the pay-off tension better.

1-3. Fiber pay off spool size:24.4km/48.8km standard reel

1-4. Traversing motor:0.4KW

Pay-off tension control device

2-1. Structure:multilwheel dance device

2-2. With tension sensor control, the pay-off speed constant, Automatic tracking the pay-off speed

Open and pressure type coating system

3-1. Compose: Open and pressure type coating cup, thermostat, storage tank,etc

3-2. With X-Y trimming frame, to ensure that the optical fiber coloring layer won’t eccentric

UV-lamp control system

4-1. Include the reflective plate, furnace casing, UV lamp,quartz glass tube, UV capacitor,etc

4-2. UV lamp power total 8KW, UV lamp use German imports of electronic power supply

4-3. Provide nitrogen flushing device, improve the UV curing degree

Wheel haul-off device

5-1. Structure:Wheel haul-off

5-2. It is coordinated action control with the servo motor. Depend On the wheel to achieve the purpose of traction fiber.

5-3. Drive:0.75 KW Panasonic servo motor

Movable Take-up and traversing device

6-1.drive:1KW Panasonic servo motor control,

6-2.Traversing motor:0.4KW

Electric Control System (PLCcontrol)

7-1. Man-Machine interface + PLC Control. Temperature controller: Japan RKC Brand PID Smart type Man-Machine interface: Kinco 10.2 inch color. PLC and Control Module: SiemensS7-300

7-2. Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands, etc.
