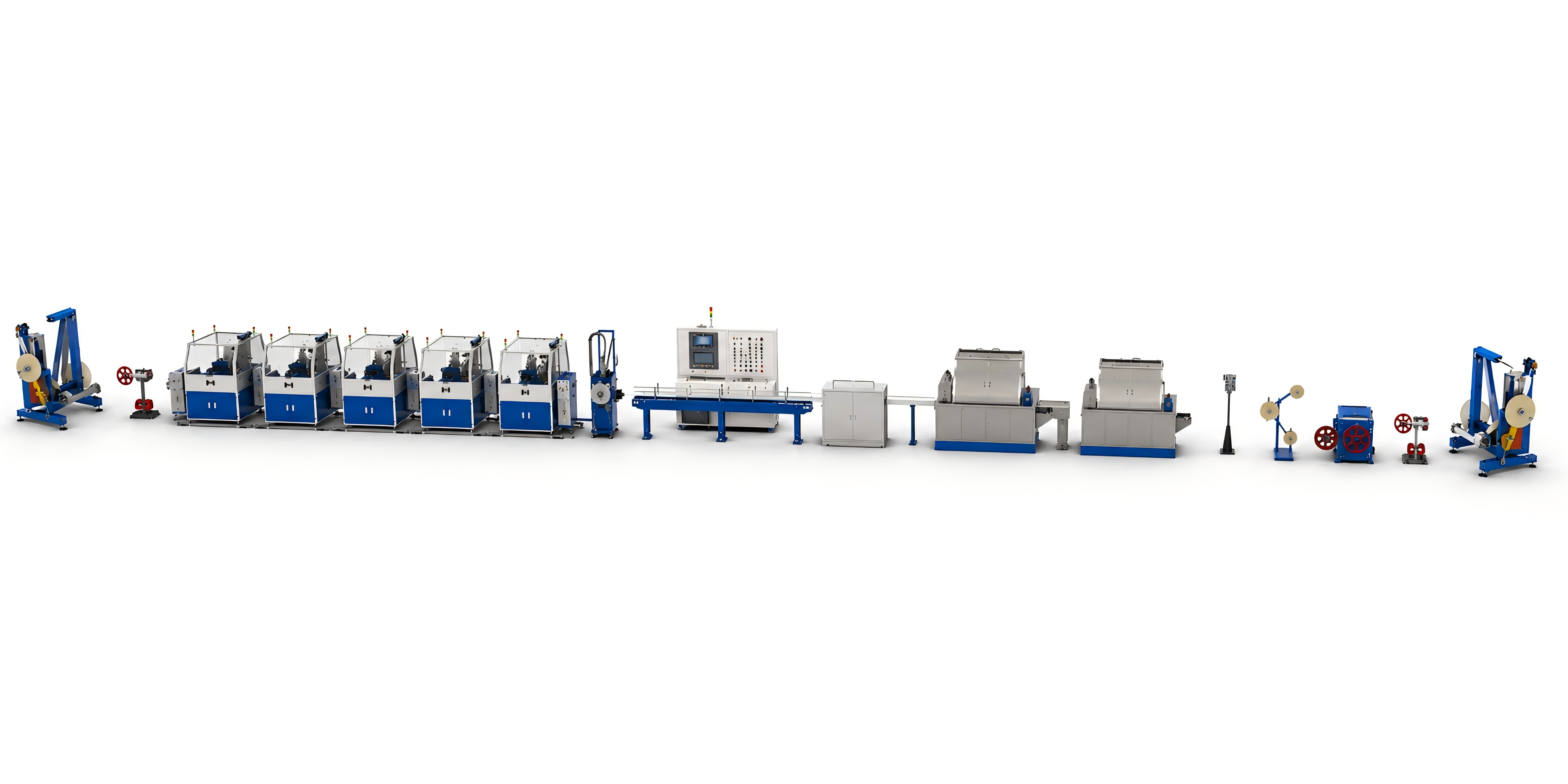

HK-800-12 PLC+IPC Control SZ Stranding Machine Production Line
Short Description:
Applied in SZ stranding of loose tubes and filler rods for outdoor optical cable production. The machine can strand 2-12 tubes with high precision and stability.

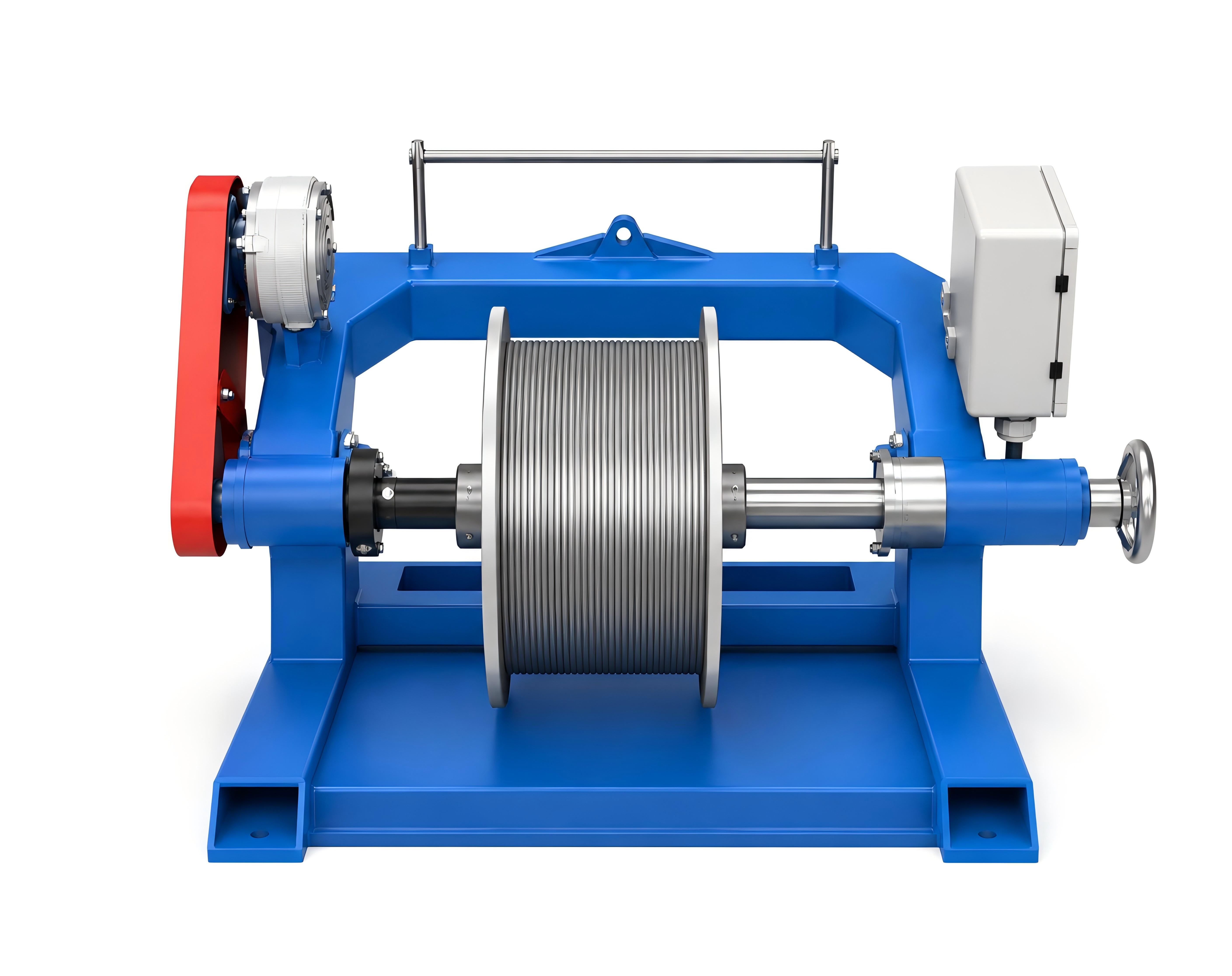

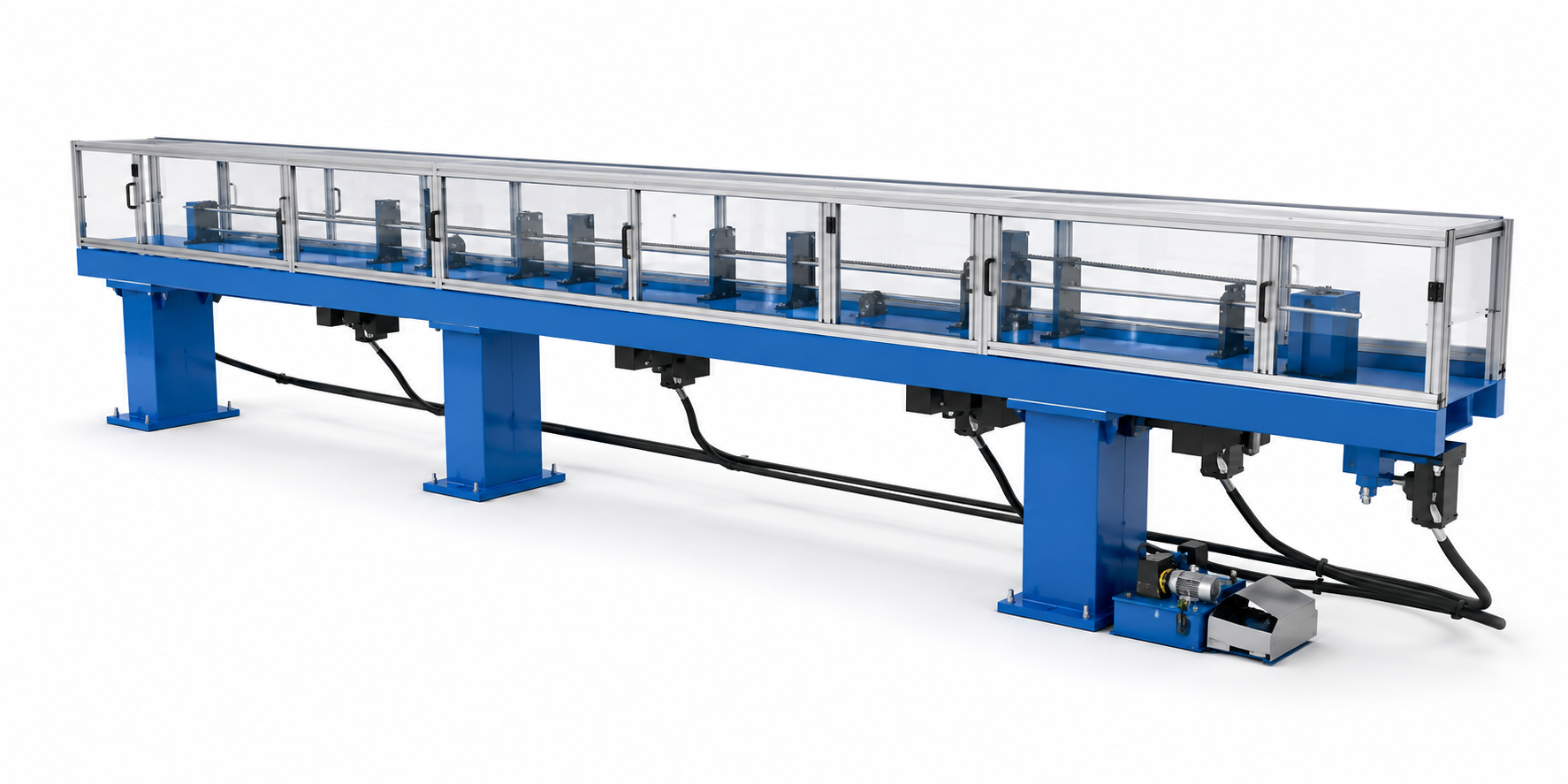

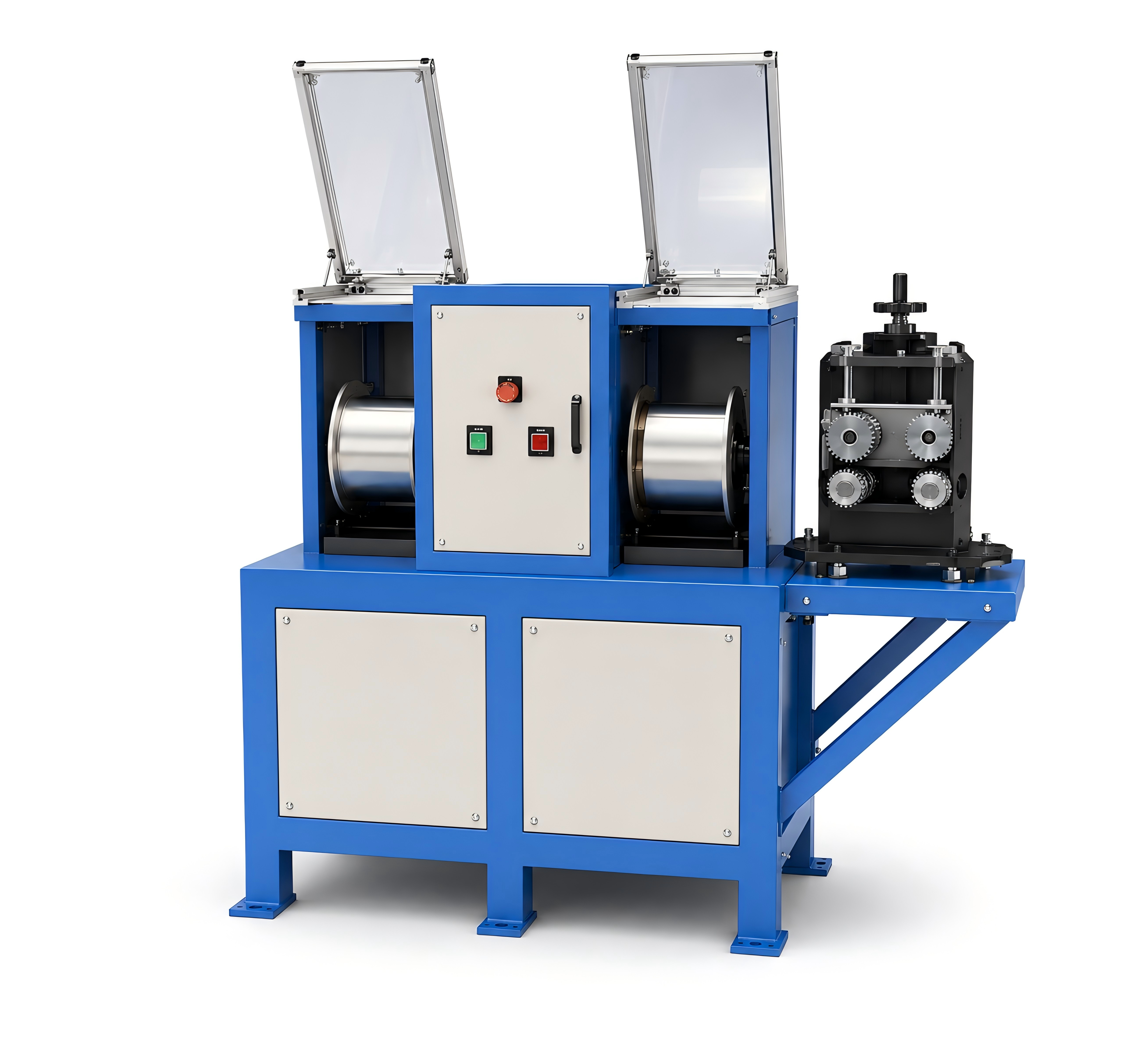

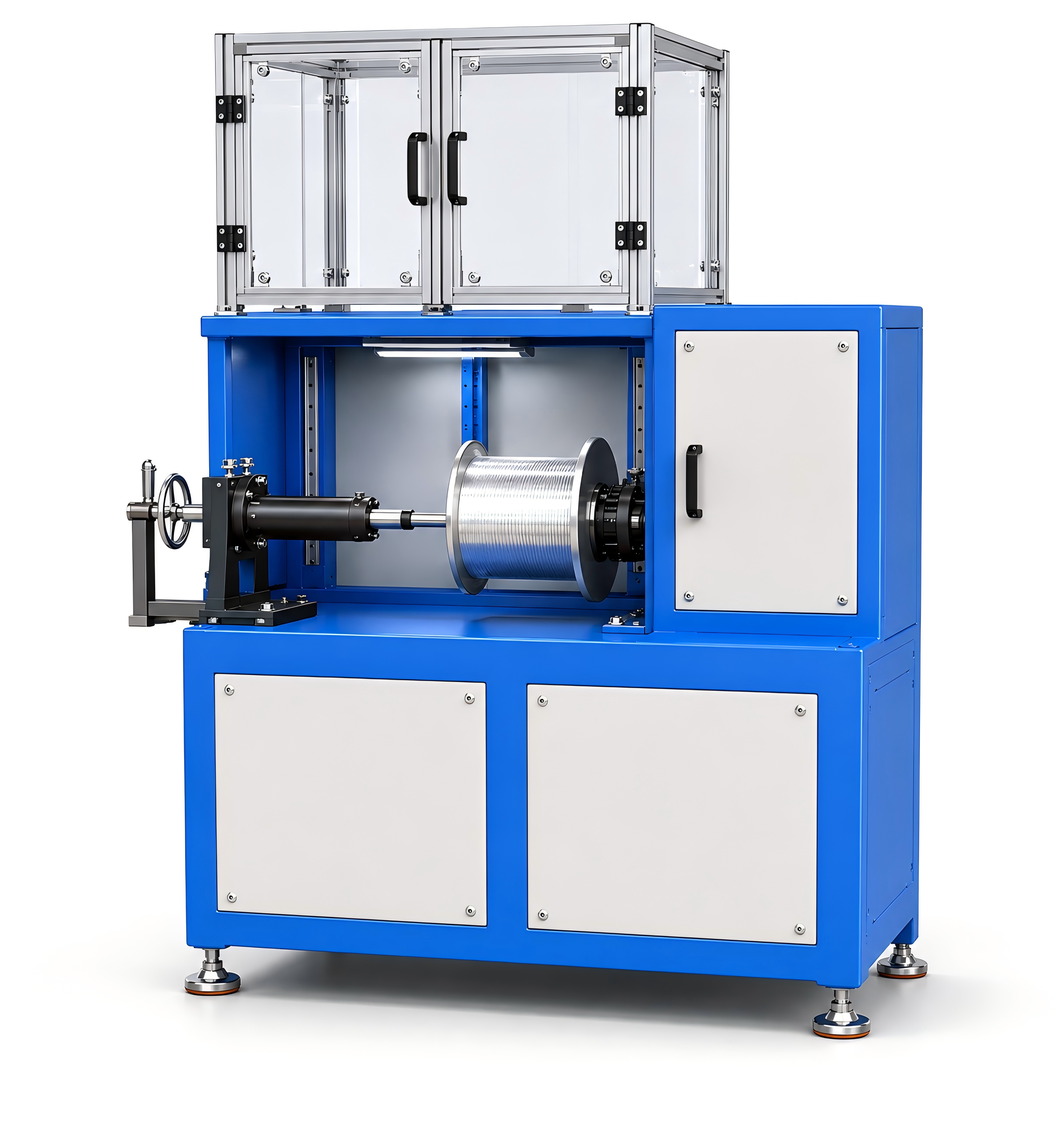

| PARAMETER | VALUE | |
| 1 | Strength member | Φ1mm ~ Φ10.0mm |
| 2 | Maximum diameter after SZ | Φ20mm |
| 3 | No. and diameter of loose tube | (Φ1.5mm ~ Φ3.5mm) / 12 |
| 4 | Structure speed | 100 m/min |
| 5 | Production speed (binder pitch: 25mm, cabling pitch: 65mm) | 80 m/min |
| 6 | Cabling pitch | (50 ~ 250) mm |
| 7 | SZ stranding angle | ± (4 ~ 18) π |
| 8 | SZ rotation speed | Max 2000 rpm |
| 9 | Binder rotation speed | Max 4000 rpm |
| 10 | Binder pitch | 15 ~ 50 mm |
| 11 | Precision of meter-counter | ≤ 0.2% |
| 12 | Additional loose after production | ≤ 0.02 dB/km |
| 13 | Machine color and direction | Dark blue; direction up to customer |
| 14 | Machine power source | 380V 50Hz Three Phase Five Wire |
| 15 | Machine power | 48 KVA |
| 16 | Line length | 42 m |
| 17 | Weight | 14 ton |
| EQUIPMENT NAME | SERIAL NO. | QTY | UNTIL PRICE | TOTAL PRICE | |
| 1 | Φ800~1600mm Motorized Type Pay Off | 1600MDFX-00 | 1 | $2,868 | $2,868 |
| 2 | Φ630mm Double Wheel Pneumatic Type Dancer | 630SLQDWDQ-01 | 1 | $1,250 | $1,250 |
| 3 | Φ800mm Loose Tube Motorized Pay Off | 800SGZDFX-03 | 12 | $2,574 | $30,882 |
| 4 | Compounder Filling Device | LGTCZZ-04 | 1 | $1,324 | $1,324 |
| 5 | SZ Oscillator | SZCJZZ-05 | 1 | $14,706 | $14,706 |
| 6 | Double Heads Binder | STSZ2S-06 | 1 | $11,029 | $11,029 |
| 8 | Double Heads Water Blocking Tape Pay Off | ZSDXD-07 | 1 | $809 | $809 |
| 9 | Single Head Binder | DTSF2S-00 | 1 | $5,147 | $5,147 |
| 10 | Φ800mm Double Wheel Capstan | 800LSQY-00 | 1 | $3,088 | $3,088 |
| 11 | Φ800mm Double Wheel Pneumatic Type Dancer | 800SLQDWDQ-02 | 1 | $1,250 | $1,250 |

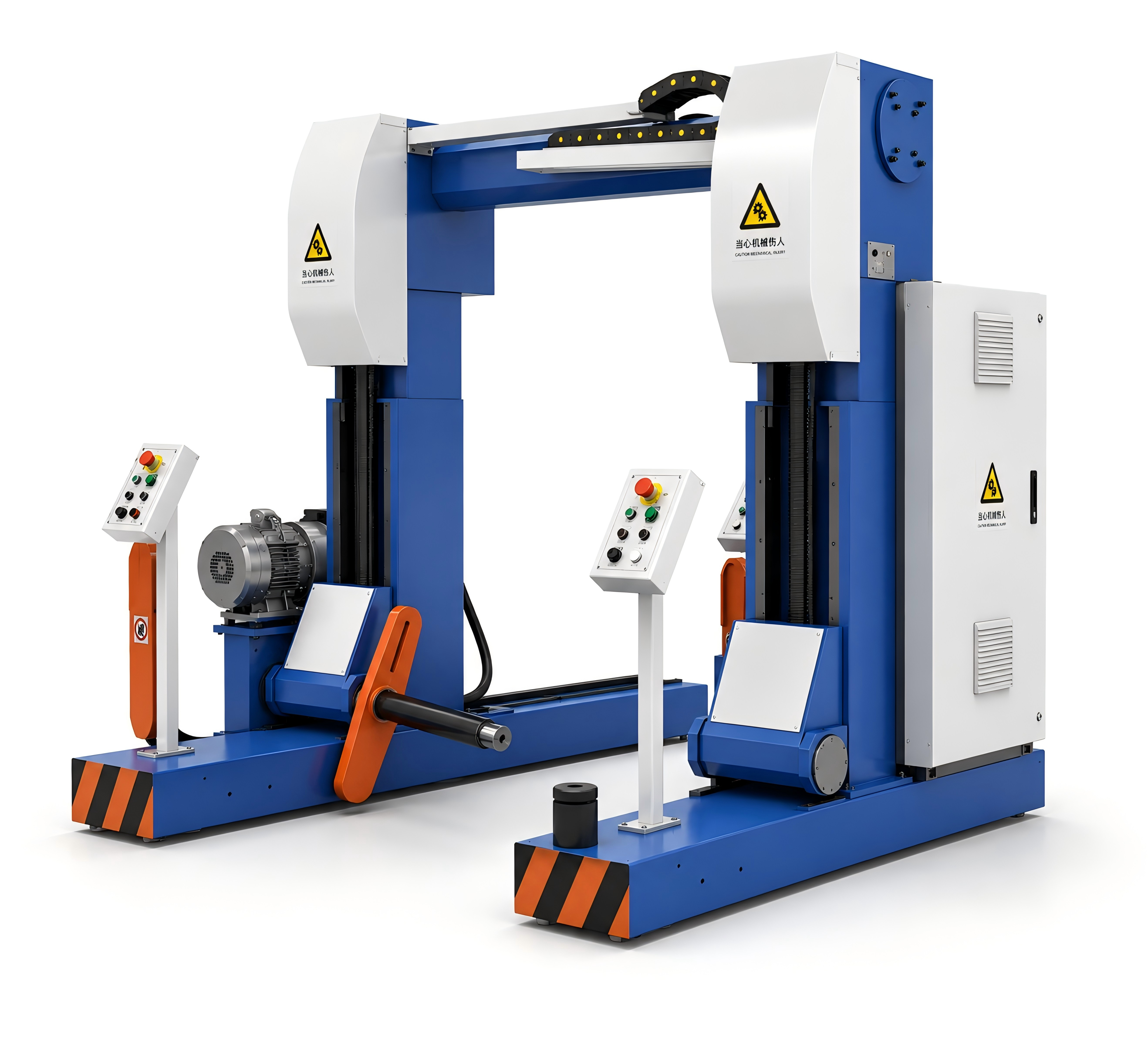

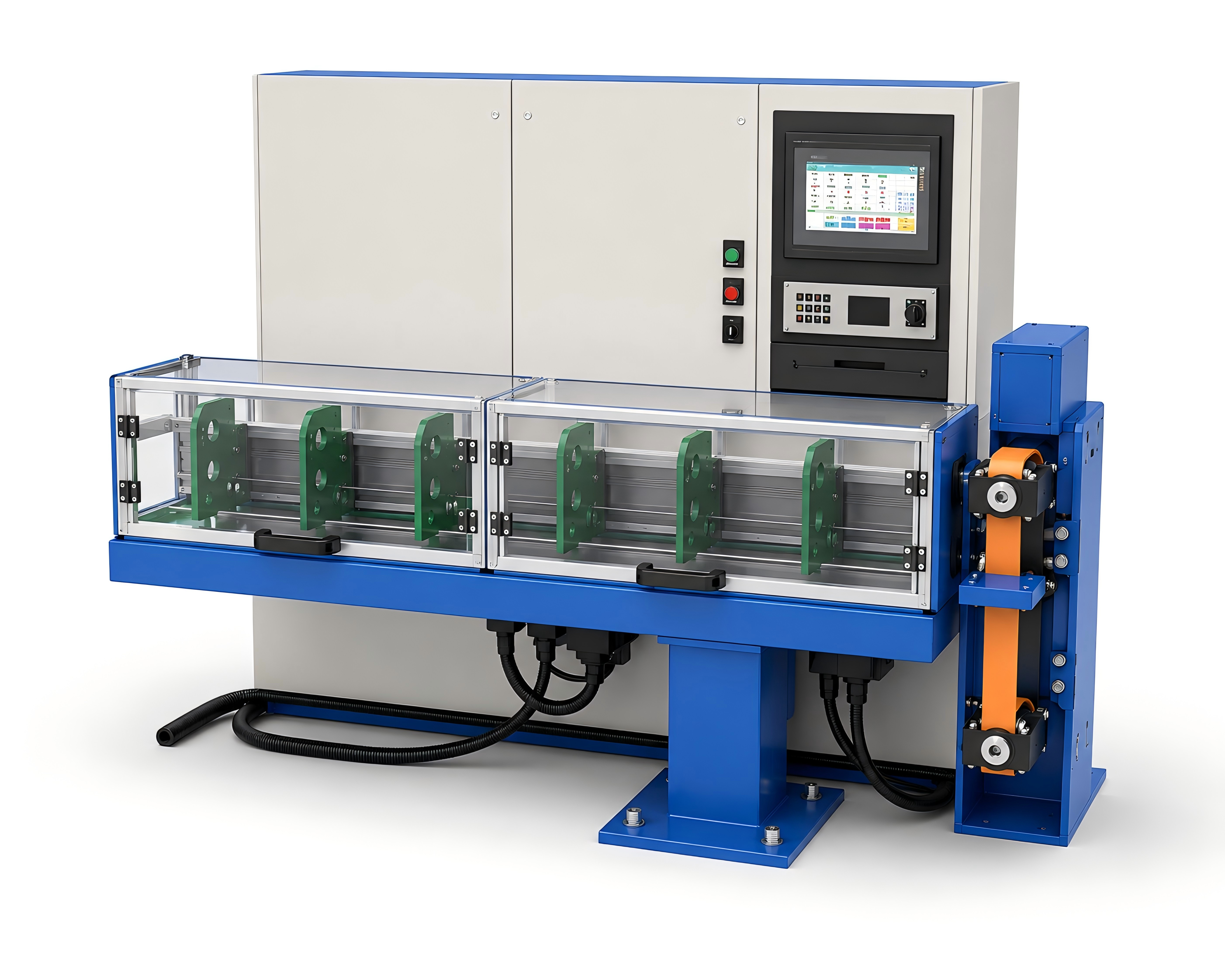

| 12 | Φ800-1600mm Longmen Motorized Take Up & Traverse Machine | 1600LMZDSX-00 | 1 | $16,176 | $16,176 |
| 13 | Main Control Cabinet (IPC+PLC Control) | ZKGSZ-01 | 1 | $5,588 | $5,588 |
| TOTAL PRICE | $94,118 | ||||
