Fiber Optical Cable Machine-simplex/duplex Cable Production Line/Optical Fiber Cable Extruder Machine
The Fiber Optical Cable Machine by Hongkai is a state-of-the-art solution designed for the efficient production of simplex optical cable line and duplex optical cable machine applications. This advanced Optical Fiber Cable Extruder Machine ensures high precision, durability, and reliability in manufacturing indoor optical cables. Ideal for telecom and data communication industries, this machine is engineered to meet the growing demands for high-quality optical fiber cables.
- Overview
- Related Products
-
-
High-Speed Extrusion: Equipped with advanced extrusion technology for consistent and high-speed production of simplex optical cable line and duplex optical cable machine outputs.
-
Precision Control: Integrated with a user-friendly control system to ensure accurate cable dimensions and superior quality.
-
Durable Construction: Built with high-grade materials to withstand continuous operation and ensure long-term performance.
-
Energy Efficiency: Designed to minimize energy consumption while maintaining optimal production efficiency.
-
Versatile Compatibility: Suitable for various types of indoor optical cables, including single-mode and multi-mode fibers.
-
Easy Maintenance: Simplified design for easy cleaning, maintenance, and part replacement.
-
-
-
Telecommunication Networks: Ideal for producing high-quality optical cables used in telecommunication infrastructure.
-
Data Centers: Perfect for manufacturing cables required for high-speed data transmission in data centers.
-
Broadband Networks: Suitable for creating durable and reliable cables for broadband and internet services.
-
Indoor Wiring: Designed for producing cables used in indoor wiring applications, ensuring safety and efficiency.
- Fiber Optic Sensors: Capable of producing cables for advanced fiber optic sensor systems.
-

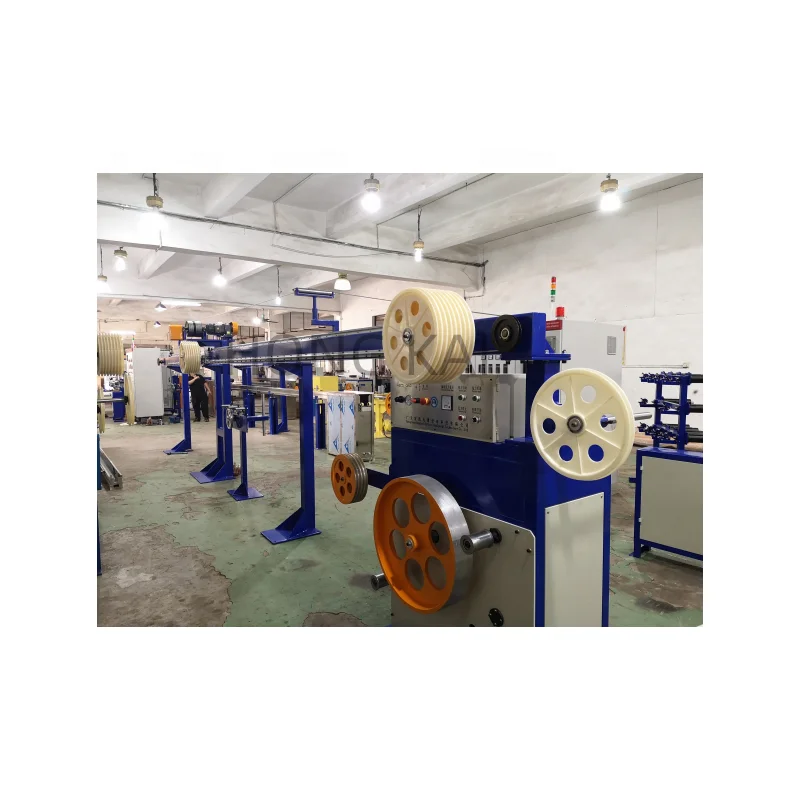

HK-50 PLC+IPC control Simplex/duplex cableproduction line
Key Features:
Applications:
I. Application: Applied in production of/simplex/duplex cable,extrusion material is LSZH/PVCThe extruded sheath possesses the features of even diameter, smooth, fast speed. And low excess loss for optical fiber.
II. Technical parameter of full line
|
1. |
No. Of optical fiber pay off: |
4 |
|
2. |
Tension of pay off: |
0.4~1.5N±0.05N |
|
3. |
Reel of optical fiber pay off: |
25km and 50km standard fiber reel,PN400 |
|
4. |
Extruder size: |
Φ50x25D |
|
5. |
Final product: |

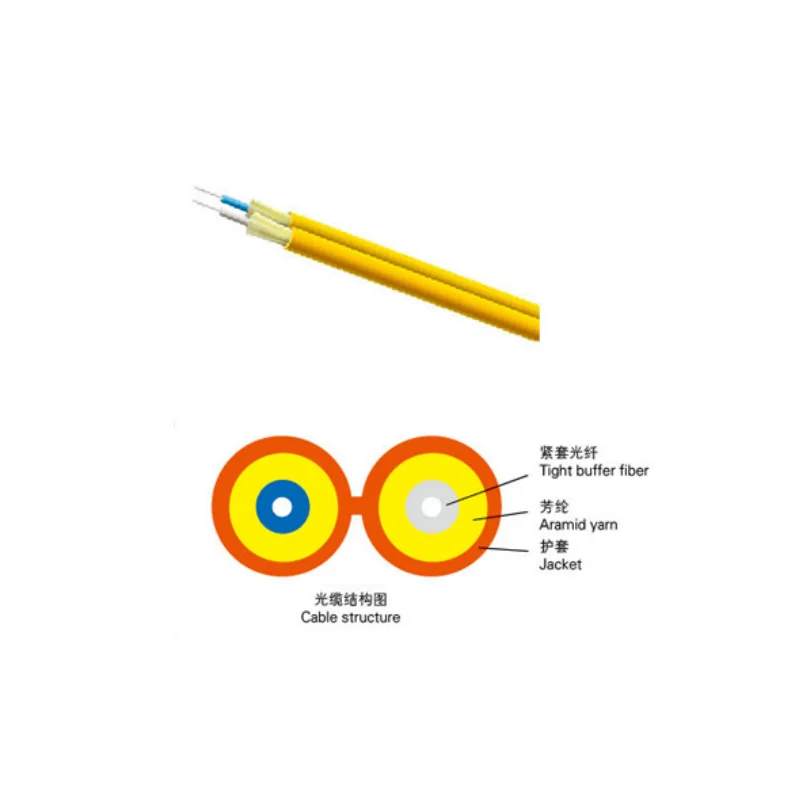

Drop/simplex/duplex cable(2.0,3.0mm) |
|
6. |
Structure speed: |
Max 150m/min |
|
7. |
Production speed: |
20-90m/min(2.0,3.0mm) |
|
8. |
Center height of machine: |
1000mm height from ground |
|
9. |
Precision of meter-counter: |
≤0.2% |
|
10. |
Additional loose after extrusion: |
≤0.02dB/km(average value: 0.01 dB/km) |
|
11. |
Power: |
Approximate 52KW |
|
12. |
Weight: |
7 ton |
|
13. |
Line length: |
26M |
|
14. |
Machine power: |
380V 50HZ three phase five wire |
|
15. |
Right to Left,Left to Right |
|
|
16. |
Range of air pressure: |
0.5-0.6MPa |
|
17. |
Machine color: |
blue-black |
|
18. |
Take-up tension: |
5-20N |
|
19. |
Take-up reels Specification: |
400 reel and 630 reel(central shaft hole diameter ø 56) |
III. Main equipment part
|
1. |

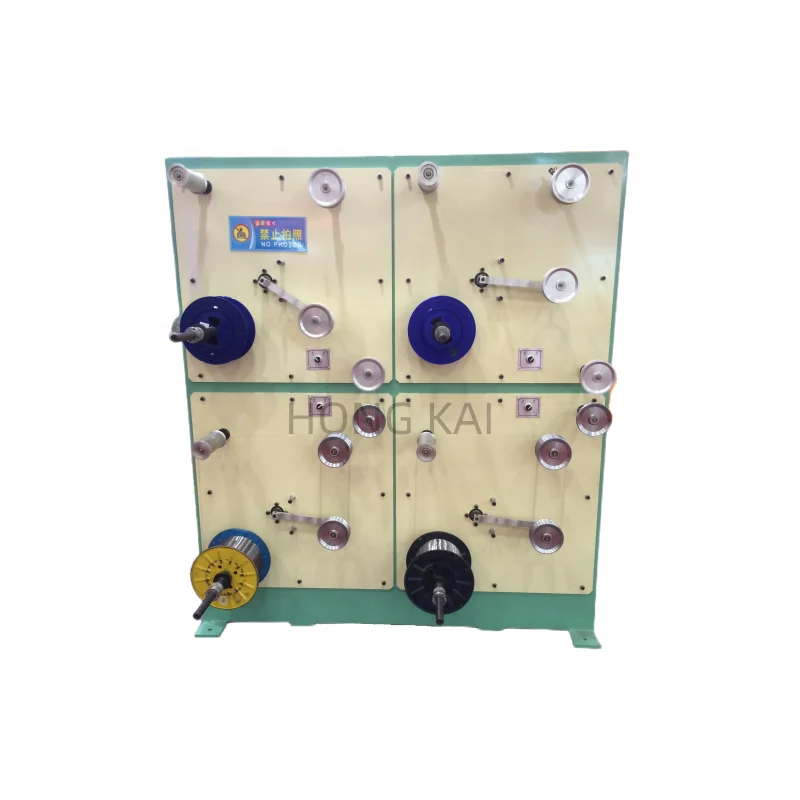

4heads optical fiber motorized pay off rack(No.: 4TZDFX-01) |
1set |
|
2. |

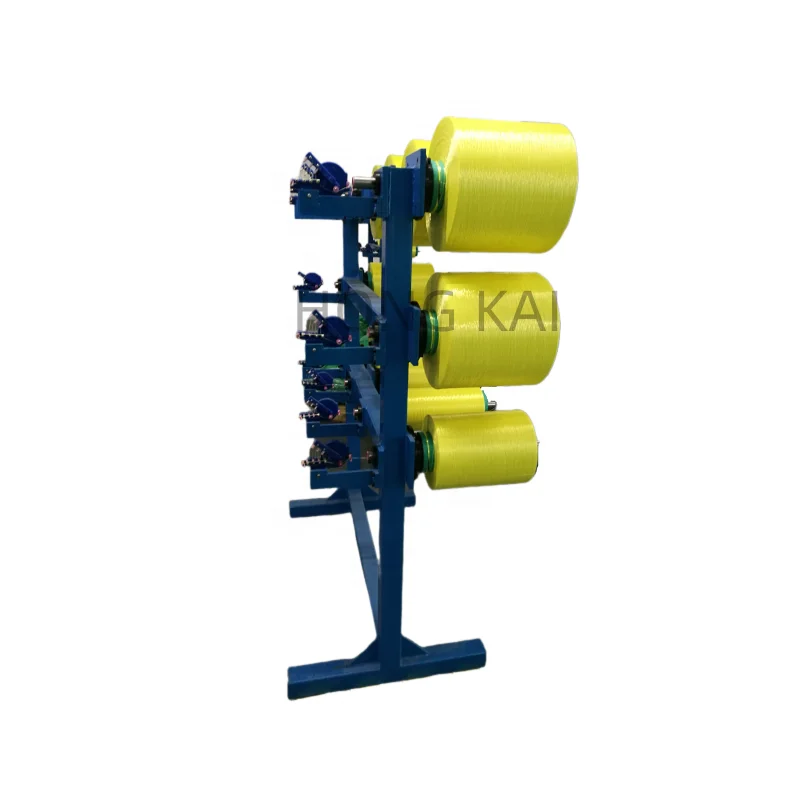

12 heads aramid yarn pay off(No.: 12TFLFX-00) |
1set |
|
3. |
Mobile positioning mold support (No.:DWJXZZ-00) |
1set |
|
4. |
Φ50x25D Extrusion main motor with cross heads(No.:50JSJ-02 |
1set |
|
5. |
50KG Dryer machine and automatic hopper |
1set |
|
6. |
Electric apparatus, main temperature control cabinet (IPC+PLC control)(No.:50GKDX-00) |
1set |
|
7. |
2.5m moving water cooling trough with water tank and warm water tank (No.:2.5MYDRSC-00) |
1set |
|
8. |
Industrial chiller(No:4PZLJ-00) |
1set |
|
9. |
8m single-layer U-type fixed type cooling water trough and water tank (with drying device)(No.:8MGDLSC-00) |
1set |
|
10. |
Shanghai Gongjiu laser diameter gauge |
1set |
|
11. |
Ink-jet printer stand device without ink-jet printer(No.:PMZZ-00) |
1set |
|
12. |
Φ640mm+300mm double-wheel capstan(No.:640LSQY-00) |
1set |
|
13. |
9m horizontal tension wire accumulator with linear slide(No.:9MHSCXJ-00) |
1set |
|
14. |

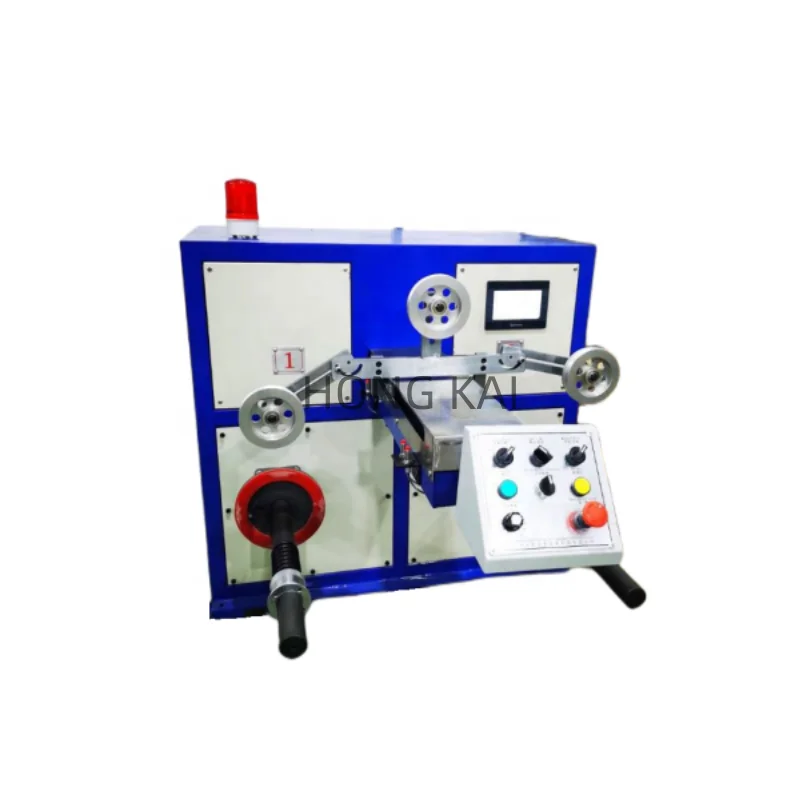

Φ400~630mm double-shaft take-up machine(No.:630SPSX-00) |
1set |
Welcome to our website and hope to you are interseted in our machines.Thank you!
