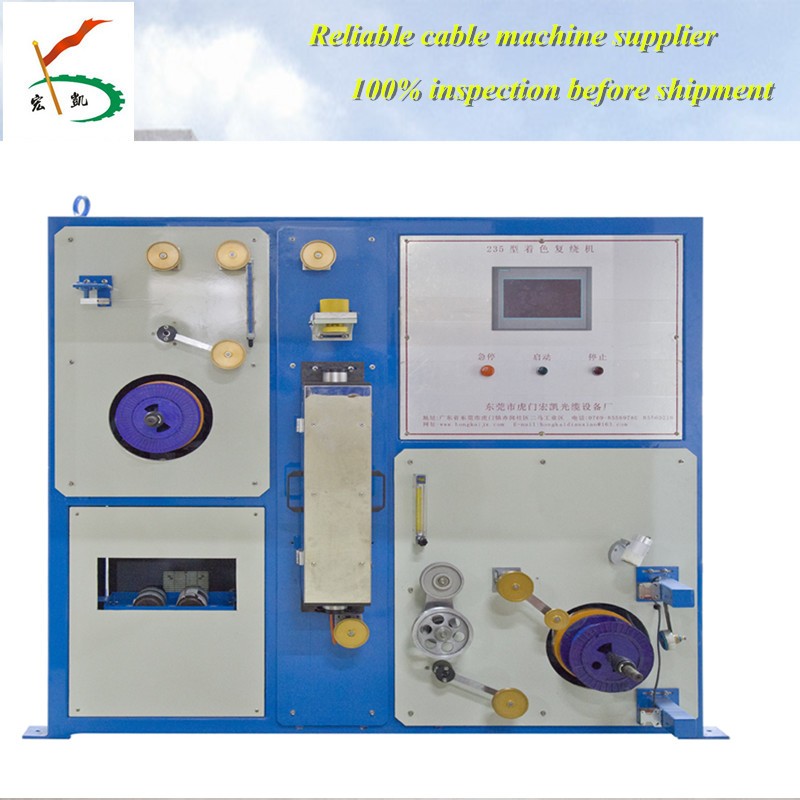

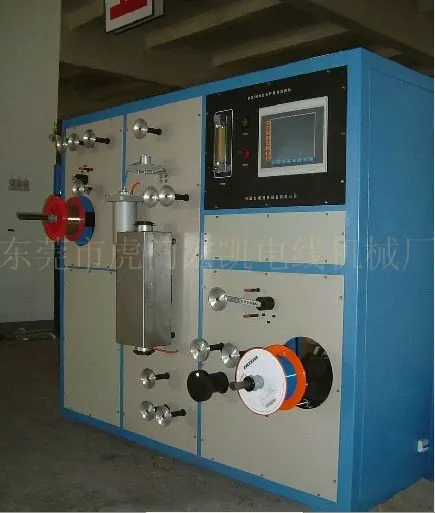

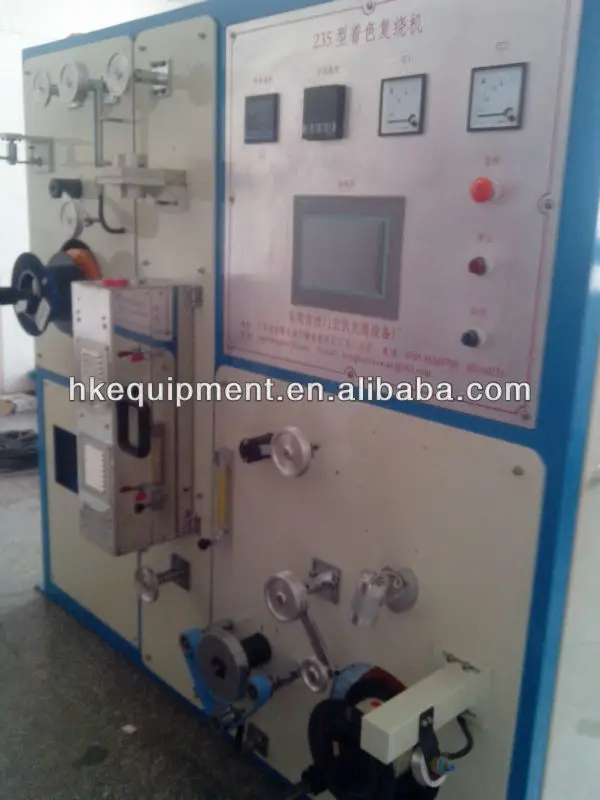

Optical fiber coloring and rewinding machine
The Optical Fiber Coloring and Rewinding Machine by Hongkai is a highly efficient and precise solution designed for the Outdoor Optical Cable Equipment industry. This advanced machine combines the functionalities of a cable coloring machine and a rewinding machine, ensuring seamless operation in the production of optical fibers. Ideal for coloring and rewinding machine applications, it delivers exceptional performance, accuracy, and reliability, making it a vital component in the manufacturing of high-quality optical cables.
- Overview
- Related Products
-
Dual-Functionality: Integrates cable coloring machine and rewinding machine capabilities for streamlined production.
-
High-Speed Operation: Optimized for efficient and continuous performance, reducing production time.
-
Precision Coloring: Ensures consistent and accurate color application for easy fiber identification.
-
Automated Control System: Features advanced automation for enhanced accuracy and reduced manual intervention.
-
Durable Construction: Built to withstand demanding industrial environments, ensuring long-lasting performance.
-
User-Friendly Interface: Simplifies operation and maintenance, minimizing downtime.
-
Energy Efficiency: Designed to reduce energy consumption while maintaining high productivity.
-
Telecommunication Networks: Producing high-quality colored fibers for reliable communication infrastructure.
-
Fiber Optic Manufacturing: Ideal for coloring and rewinding machine applications requiring precision and consistency.
-
Data Centers: Ensuring efficient fiber identification and organization for seamless data transmission.
-
Outdoor Cable Systems: Supports the creation of durable and easily identifiable fibers for harsh outdoor environments.
Key Features:
Applications:
The Optical Fiber Coloring and Rewinding Machine is widely used in the production of optical fibers, making it an essential tool for:
With its advanced technology and versatile functionality, the Optical Fiber Coloring and Rewinding Machine from Hongkai is the ultimate choice for businesses seeking to enhance their Outdoor Optical Cable Equipment production capabilities.
Application
The optical fiber coloring and rewinding machine mainly applied for coloring the surface of optic fibers,convenient to identify the multi-fibers within the loose tube.Also can be used to rewind fibers and coat the nylon-tighted fibers with the silicone gel .
Features
a,main function :coloring the surface of optic fibers
b,auxiliary function:rewiding the optic fiber
c, the machine use IPC+PLC control system,main electric parts are importing,
d, high production efficiency, convenient operation.
Parameters
Coloring speed 1000-1200m/min or 1500-1600m/min
Structure speed L1500m/min or 1800m/min
Rewinding speed <=1500n/min or 1800m/min
Coloring layer thickness 3-5um
Pay-off tension 0.4N-1.2N±0.05N
Traversing pitch 0.2-1.5mm
Excess loss after coloring <=0.02db/km
Optical fiber reel size(MAX) ø350×ø25.4×ø300mm,weight:5kg(25km/50km reel)
Main brand
Motor: Siemens motor
Transducer: American Emerson transducer
PLC:Siemens S7 series
Temperature controller:FOTEK temperature controller PID smart type
Screw and barrel: Designed by Taiwan LIQI company, Produced by Zhejiang Honghu company
Bearing: Japan NACHI
electrical parts: adopt OMRON,FOTEK,SHILIN brands, etc.

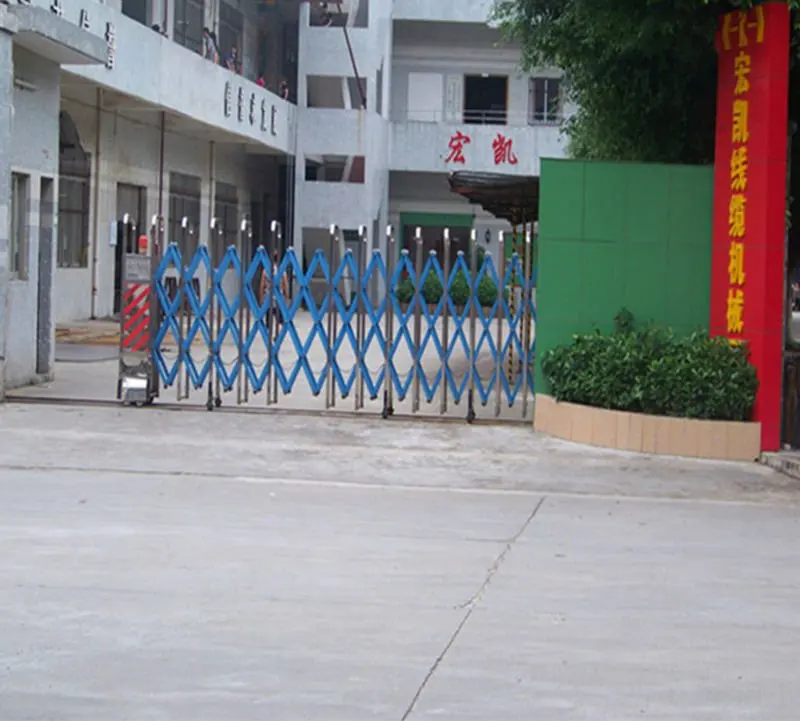

Dongguan Hongkai Optical Cable Equipment Factory(original: Dongguan Hongkai electric wire &cable machinery factory). is a professional factory which specializes indeveloping and manufacturing optical fiber cable equipments, electric wire and cable equipments, telecommunications wire and cable equipments. We can also supply a whole set of services including whole factory planning, equipments staff training, after-sales service, etc.
A.What can we supply for our customer?
Our professional production technology staff can train your staff ,our R&D team can give you better design according to your special requirement.100% inspection before shipment.
B.What's the payment terms ?
We accept T/T ,L/C
C.How long is the machine warranty period ?
the warranty is for one year (since the products have installed in the buyer's factory) based on technique condition, during the warranty, the supplier shall take the change of parts free of charge due to quality elements.Unless otherwise caused by other reasons, the buyer shall pay the cost of parts itself. All these two conditions, the buyer Shall be responsible for the round-transportation expenses for equipment maintenance or replacement and accommodation expenses and other related expenses for the staff sent by the seller, while the supplier assigns relevant technicians and provides machine parts.
D.What's the Terms of packing ?
1,PVC thin film packing
2,other parts are packed in wooden case
3,if any special requirements,we will pack it as requirement
E.How many years our company set up?
From 2005 we start make electric wire and cable machine,then 2006 our factory began to invest in R&D of optical cable machine.Now our products have been selling well to many customers at home and abroad.and win good reputation and long-term cooperation relationships.
