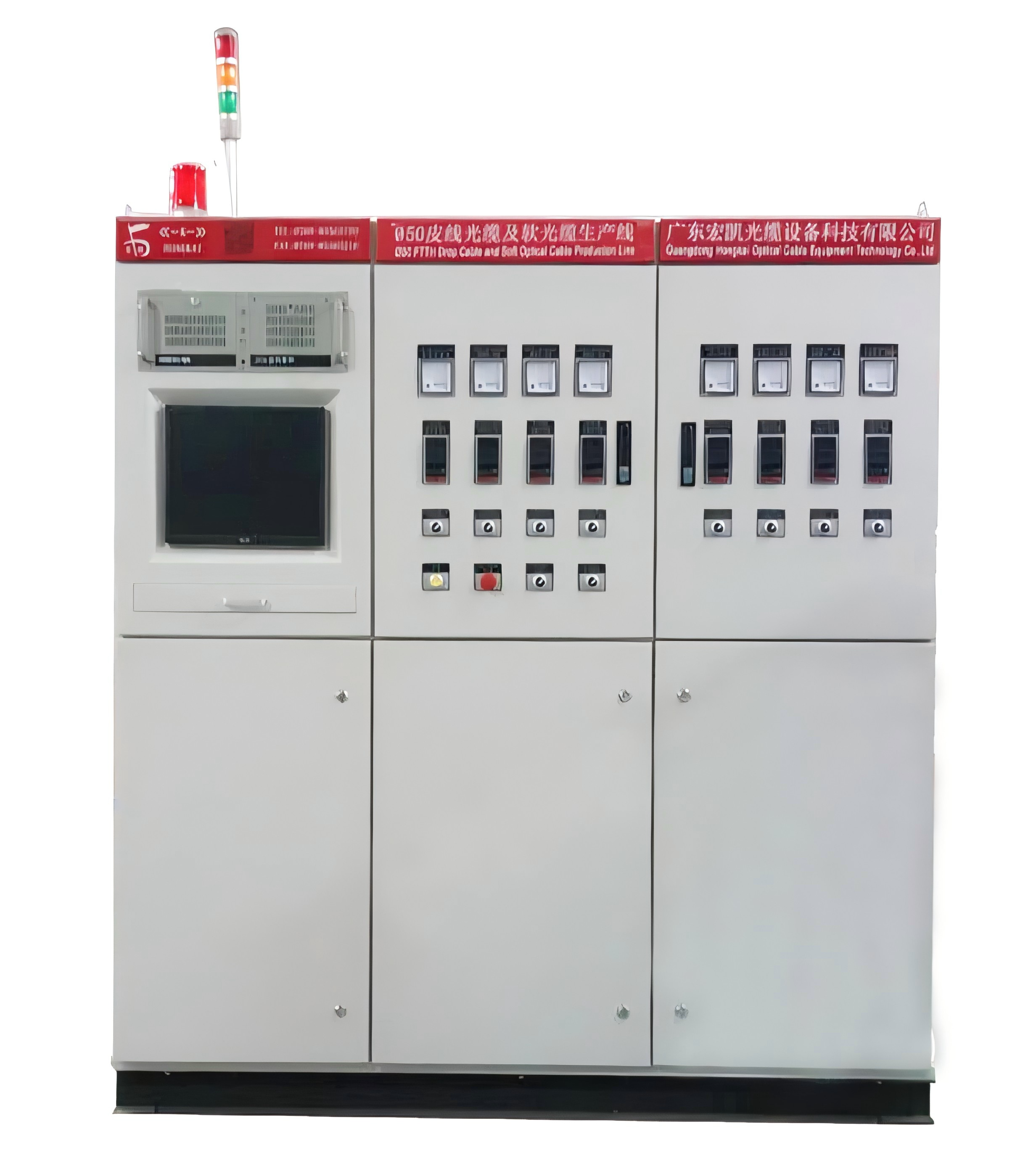

HK-50 PLC+IPC control 1-4 fibers FTTH drop cable production line
Short Description:
Applied in production of FTTH terminal optical fiber cable, extrusion material is PVC/LSZH. The extruded sheath possesses the features of even diameter, smooth, fast speed. And low excess loss for optical fiber.
| No. Of optical fiber/tight buffer pay off： | 4 heads for fiber/ 2 heads for tight buffer |
| Tension of pay off： | 0.4～1.5N±0.05N |
| Reel of optical fiber pay off： | 25km and 50km standard fiber reel, PN400 |
| No. of reinforcement pay-off rack： | 2 |
| Specification of reinforcement pay-off reels： | PN400 reels and ø254×ø116×180×ø32 reels |
| Reinforcement Specification： | ø0.45mm |
| Pay-off tension of reinforcement： | 5N-30N |

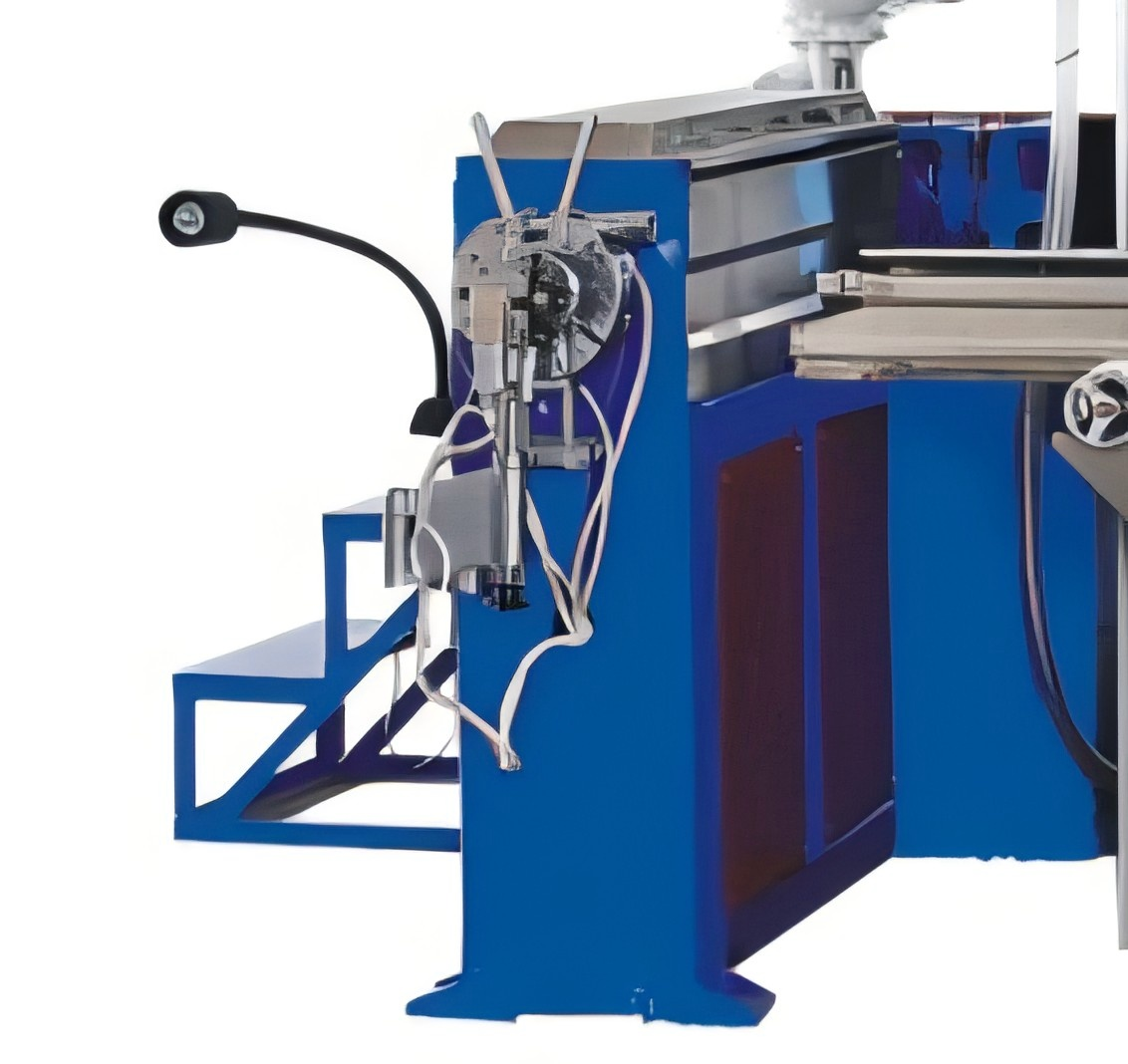

| Extruder size： | Φ50x25D |
| Final product： | FTTH drop cable(2.0*3.0mm, 2.0*5.2mm), |
| Structure speed： | Max 150m/min |
| Production speed： | 120m/min(2.0*3.0mm) |
| Center height of machine： | 1000mm height from ground |
| Precision of meter-counter： | ≤0.2％ |
| Additional loose after extrusion： | ≤0.02dB/km(average value: 0.01 dB/km) |
| Power： | Approximate 54KW |
| Weight： | 5 ton |
| Line length： | 28M |
| Machine power： | 380V 50HZ three phase five wire |
| Line direction： | It’s up to customer |
| Range of air pressure： | 0.5-0.6MPa |
| Machine color： | Dark blue |
| Take-up tension: | 5-20N |
| Take-up reels Specification: | 400 reel and 630 reel(central shaft hole diameter ø 56) |
Specification and technical parameter of each equipment part
- 4heads optical fiber/tight buffer motorized payoff rack and 2heads FRP/steel wire pay offrack
- 4heads optical fiber motorized pay-off rack
(1). Cabinet structure , the horizontal cylinder
(2). Pay-off reels:25km and 50 km standard optical fiber reels,PN400 reel
(3). 4sets 0.75KW CPG gear motor +Danfoss transducer control
(4). Swing arm type tension controller
- 2heads FRP/steel wire pay off rack
(1). Cabinet structure , the horizontal cylinder
(2). Pay-off reels:400 reels
(3). 2sets 0.75KW CPG gear motor+Danfoss transducer control
(4). Swing arm type tension controller
